Blood Bank Equipment

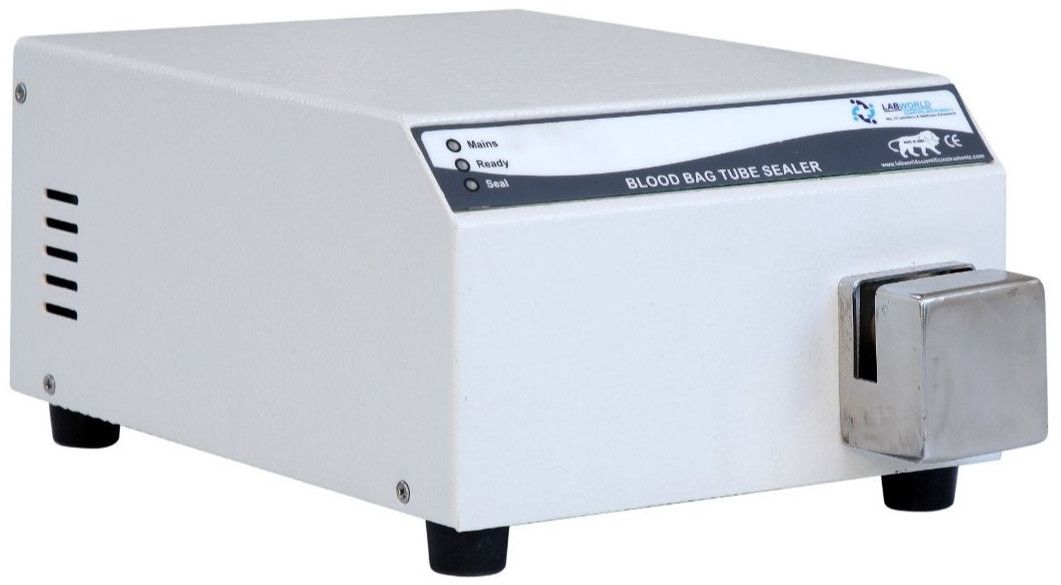

Radio frequency 40.68 MHZ input voltage ac 230v, frequency :50 Hz. power

consumption100VAM,sealingtimeapprox:1.5secto2.5sec.(dependingupon the

size of tube) (with battery)

Technical Specification:-

• Easy handling

• Swift and complete stripping of blood bag tubes.

• Donor Tube Stripper used to facilitate anticoagulation of blood in donor

• Tubing prior to preparing segments

• Main body manufactured by high grade Brass metal with chrome plating.

• Bushes made from high grade Teflon rod.

• Also available S.S made stripper with cutter.

Blood Bank refrigerator equipped with Hermitical type Heavy duty compressors .Inner chamber having direct air flow

system for temperature uniformity to maintain a vital operational Temperature of 4˚C.TheMicro-controllerbased LCD

graphic display ensures crystal clear accurate temperature values from long distance. The transparent inner Acrylic door

provides clear viewing of material kept in the chamber.

Salient Features:

• Micro controller based graphic LCD display

• CFC free refrigerant and high density PUF insulation

• Audio–Visual alarm when the temperature deviates

• Built-in 7 days chart recorder

• Motors with Impeller for temperature uniformity in chamber

• LED lamp for chamber inside visibility

• Perforated Stainless-Steel heavy-duty baskets

• Castor wheels for easy mobility

• Input Voltage 230VAC 50Hz

• Accuracy: ±0.5˚C

• Inner SS304 grade stainless steel and outer Mild steel powder coated

Micro Control Based Blood Collection Monitor with LCD Graphic display of

volume, Weight, flow rate, audio visual alarm, motor activated clamping and

time totalistic and auto calibration. Maintenance free battery,

appx.8hoursbatteryback-up.

‘eltek’ High Volume Refrigerated Centrifuge, Floor Model with maintenance free

Brush Less Induction Motor and Variable Frequency Drive, Advanced

Microcontroller with soft touch key pad for setting Speed- 500 to maximum of

rotor head speed ,RCF Value, Rotor selection, Timer in the range 1to120 minutes

with infinite mode, Temperature in the range of -50°C to +40°C,and 99 program

memory. LCD Display of working parameters and solenoid safety lock. The

centrifuge is also provided with imbalance indication & safety cutoff mechanism,

Rotor in motion indication, safe lid open indication when rotor is static after the

spin, working RCF reading, user definable acceleration and deceleration time

setting in the range 30 to 510 seconds.CFC Free Refrigeration with Pre cooling

and stand by cooling facility. Sturdy and safe metal fabricated

body with ss Chamber. Lid with Gas Spring for easy operation.

Max.Capacity6000ml.Max. Speed4800RPM,Max.RCF6000xg.

Double Pan Weighing Balance

Capacity - 6 kg each pan

Digital LED

Plasma extractor for extracting blood components (Plasma and Platelets) from collection container. Manually operated unit with front panel spring loaded to give uniform pressure on container facilitating transfer of fluid. Compression plate made of transparent acrylic, the body surface will be noncorrosive and can be  cleaned with antiseptics.The unit can accommodate bags upto 500ml.

Microcontroller based Plasma Thawing Bath for thawing frozen plasma

at 37ºC, can accommodate 8 plasma bags with water circulation pump.

Eltek Platelet Incubator Capacity of 125 Liters. Inner chamber is made of

Stainless Steel (SS-304).8mm thickness Outer Body Mild Steel duly powder

coated and thickness1mm.Temperature up to 22°C.With built-in Micro

controlled Graphic LCD display having audio visual Alarm. 7 Days Chart

Recorder. Provision for accommodate 1 agitator with 36 or 48 platelet bags

Ultra Plasma Freezer with advanced micro control for setting and precise maintenance of set parameters. Its usage

includes preservation of plasma and blood components at desired low temperature. The Outer body made of mild steel

(1mm thick) powder coated inner chamber is fabricated of stainless steel 304 grade 1mm thickness. Operation is made

simple with the help of soft buttons.

Salient Features: -

• Temperature-80°C

• CFC free gas and high density PUF Insulation.

• Password protected control board

• Micro Controller based Graphic LCD display

• Eco – Friendly refrigerator system with time delay

• Audio–Visual alarm if the temperature deviates.

• Input Voltage 230 VAC 50Hz

• Built-in 7 days chart recorder

Salient Features: -

• Temperature :40°C

• CFC free gas and high density PUF Insulation.

• Password protected control board

• Micro Controller based Graphic LCD display

• Eco – Friendly refrigerator system with time delay

• Audio–Visual alarm if the temperature deviates.

• Input Voltage 230VAC 50Hz

• Built-in 7 days chart recorder
