Masjid Bunder, Mumbai, Maharashtra
- GST NO. : 27AAAHH9721D1ZH
75,000.00 / piece( + 18% GST applicable)
| Business Type | Supplier, Trader, Distributor |
| Brand Name | Siemens |
| Finishing | Polished |
| Driven Type | Electric |
| Click to view more | |
Preferred Buyer From
| Location | India, United Arab Emirates, Bangladesh, Bhutan, Ghana, Hong Kong, Indonesia, Kenya, Cambodia, Kuwait, Sri Lanka, Myanmar, Mongolia, Nigeria, Nepal, Philippines, Singapore, Somalia, Uganda, South Africa, Bahrain, Colombia, Saudi Arabia, Thailand |
Product Details
Shape
Square
Condition
New
Usage
Labarotory
Certification
CE Certified
Voltage
220V
Specialities
Long Life
Type
Brushless DC Motor
Warranty
5 Years
Speed
1000-2000rpm
Technical Data
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Maximum load | 25 kg |
| Motor rating output | 9 W |
| Direction of rotation | right / left |
| Speed display set-value | LCD |
| Speed display actual-value | LCD |
| Speed adjustment | Turning knob |
| Speed range | 50 - 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length | 30 - 80 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +2 K |
| Heat output | 1000 W |
| Temperature display set-value | LCD |
| Temperature display actual-value | LCD |
| Temperature unit | °C |
| Heating temperature range | room temp. - 500 °C |
| Heat control | Turning knob |
| Display resolution | 1 K |
| Temperature setting range | 0 - 500 °C |
| Temperature setting resolution of heating plate | 5 K |
| Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
| Temperature setting resolution of medium | 1 K |
| Adjustable safety circuit | 100 - 650 °C |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 180 x 180 mm |
| Automatic reverse rotation | yes |
| Intermittent mode | yes |
| Viscosity trend measurement | yes |
| Timer | yes |
| Timer display | LCD |
| Time setting min. | 1 s |
| Time setting max. | 143940 min |
| Sensor in medium detection | yes |
| Temperature measure range PT1000 | -10 - 350 °C |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±2 % |
| Heating rate (1l H2O in H1500) | 5 K/min |
| Heat control accuracy of heating plate (at 100°C) | ±5 K |
| Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.5 K |
| Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.5 K |
| Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.2 K |
| Dimensions (W x H x D) | 220 x 88 x 354 mm |
| Weight | 4 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 220 - 230 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
| Power input standby | 2 W |

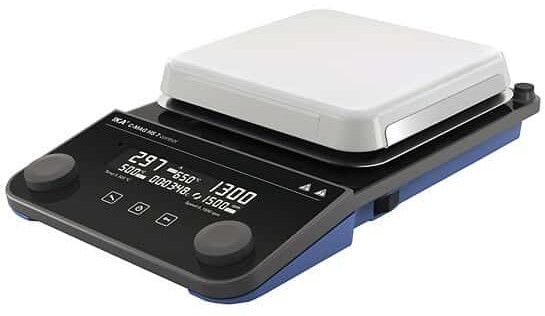

Looking for "C-MAG Hs 7 Control" ?
